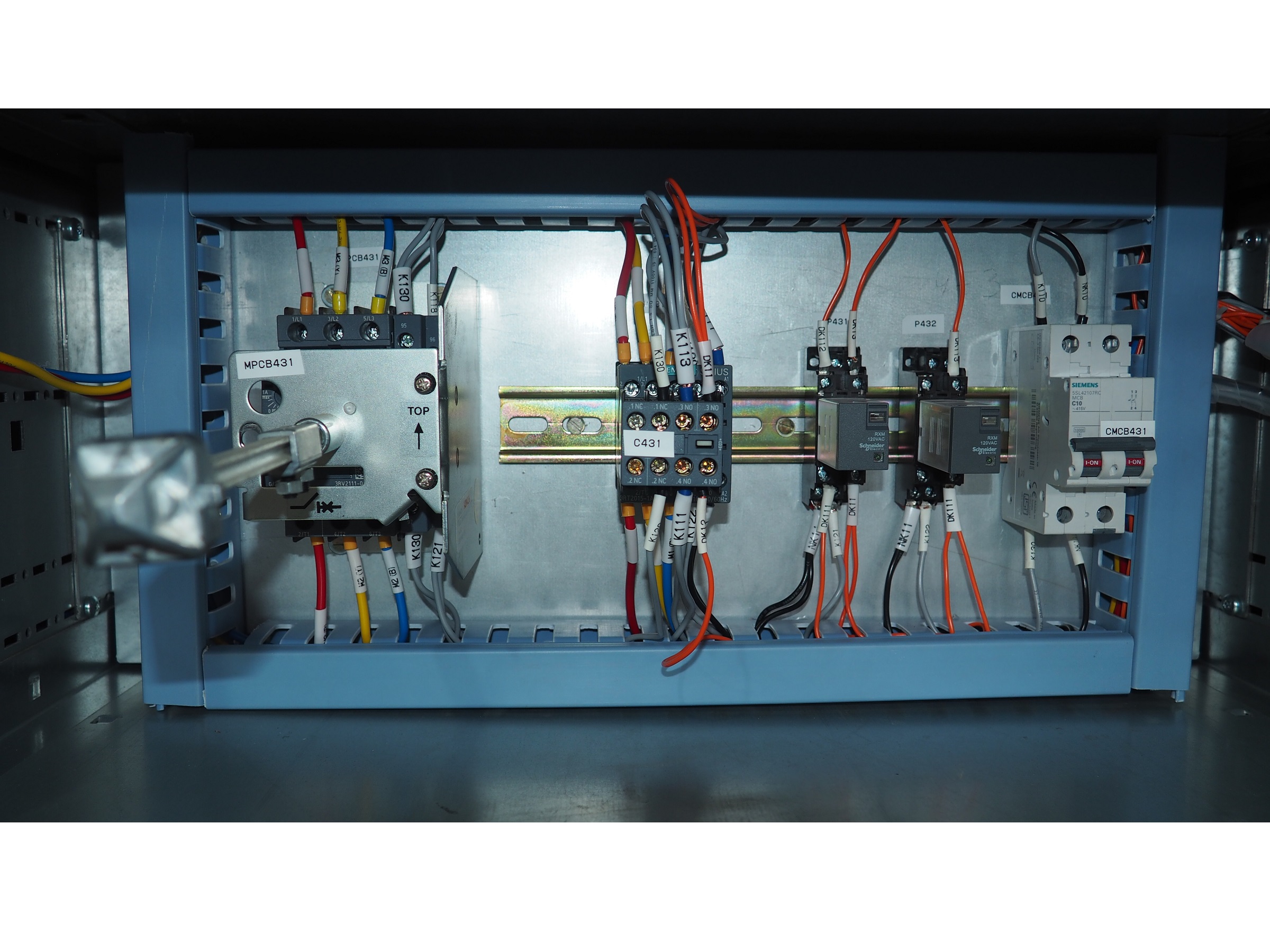

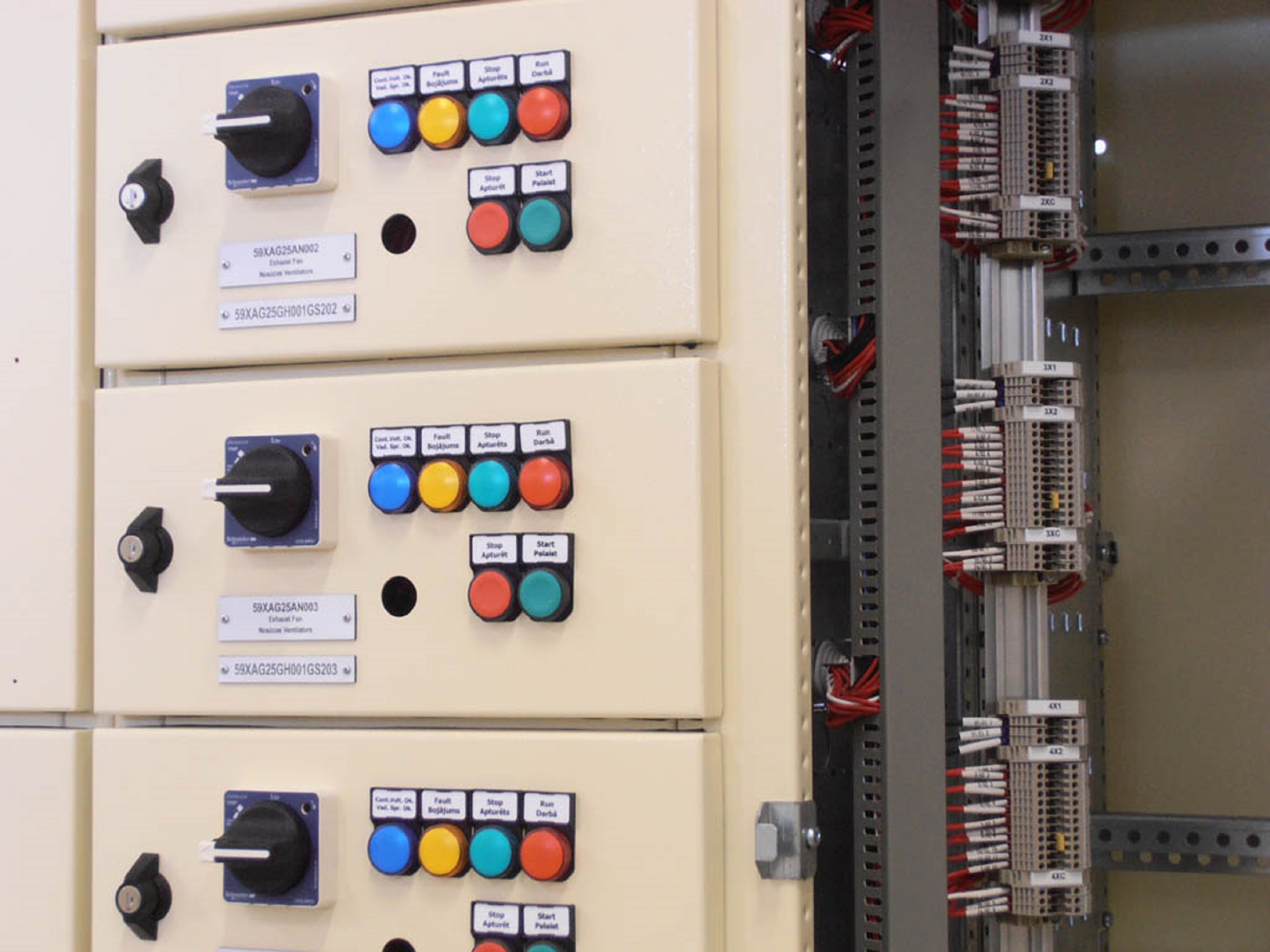

Motor control center (MCC) is an assembly to control some or all electric motors in a central location. It consists of multiple enclosed sections having a common power bus and with each section containing a combination starter, which in turn consists of motor starter, fuses or circuit breaker, and power disconnect. A motor control center can also include push buttons, indicator lights, variable-frequency drives, programmable logic controllers, and metering equipment. It may be combined with the electrical service entrance for the building.

MCC's are typically found in large commercial buildings or industries where there are many electric motors that need to be controlled from a central location, such as a mechanical room or electrical room.

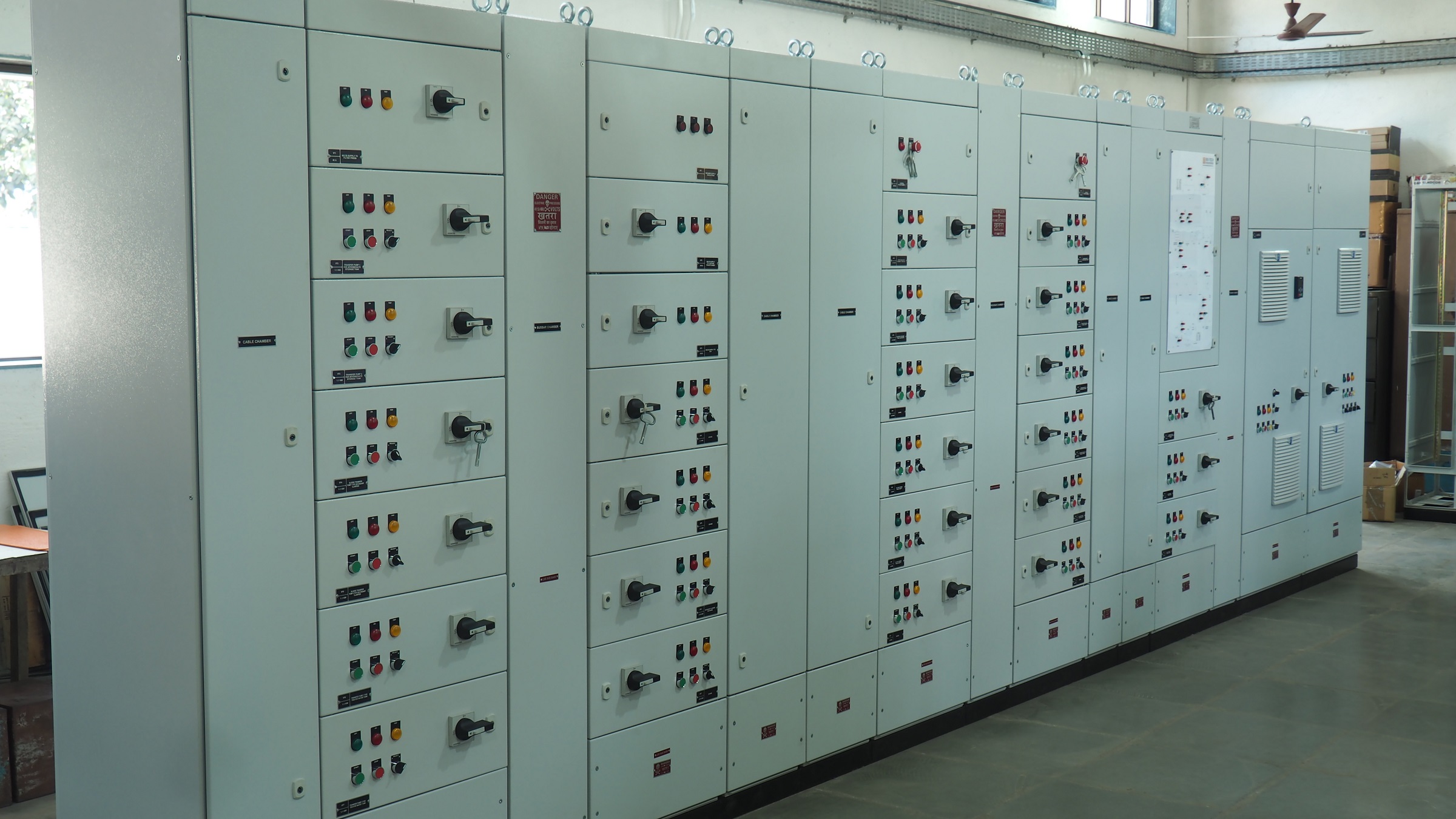

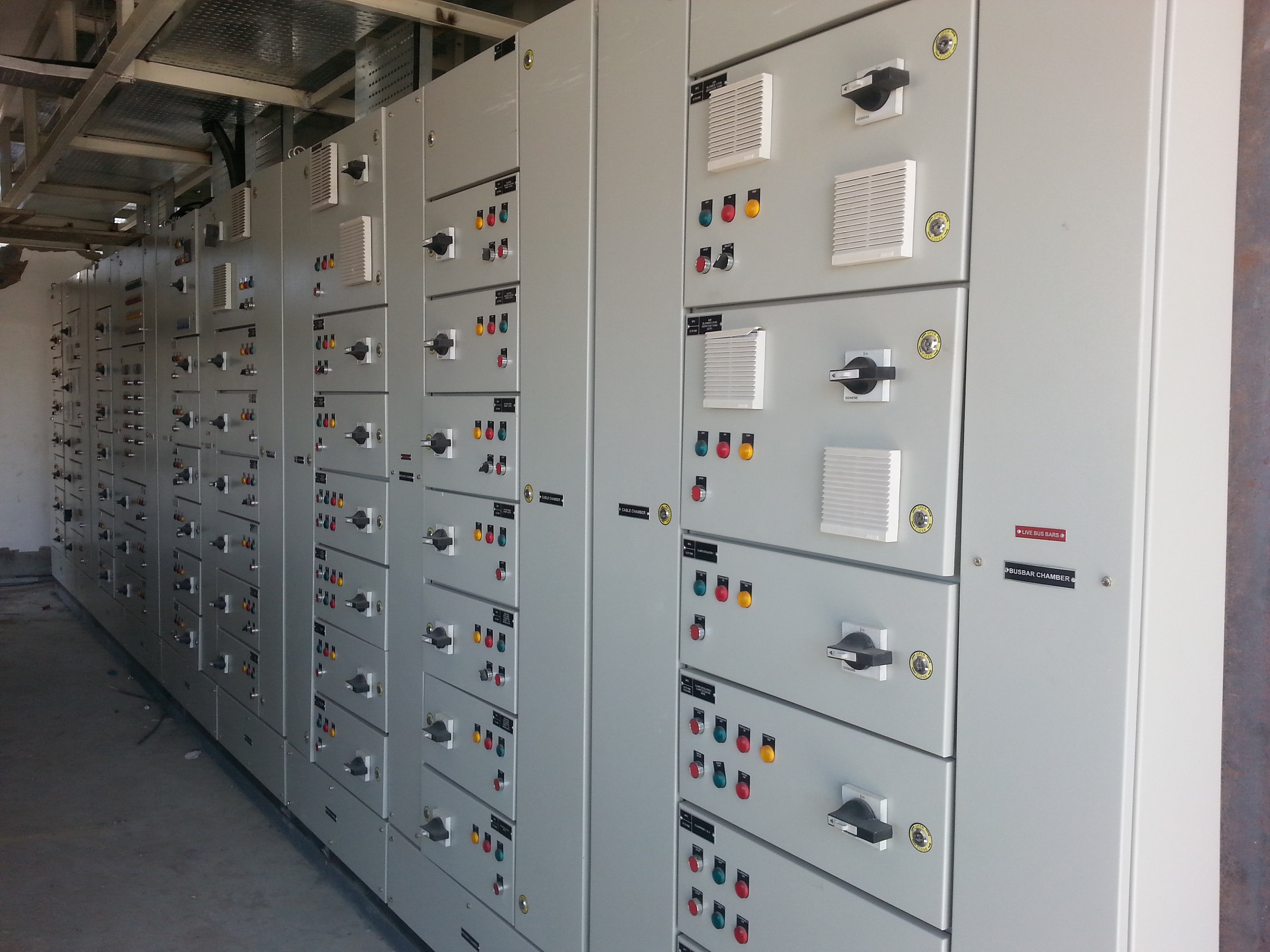

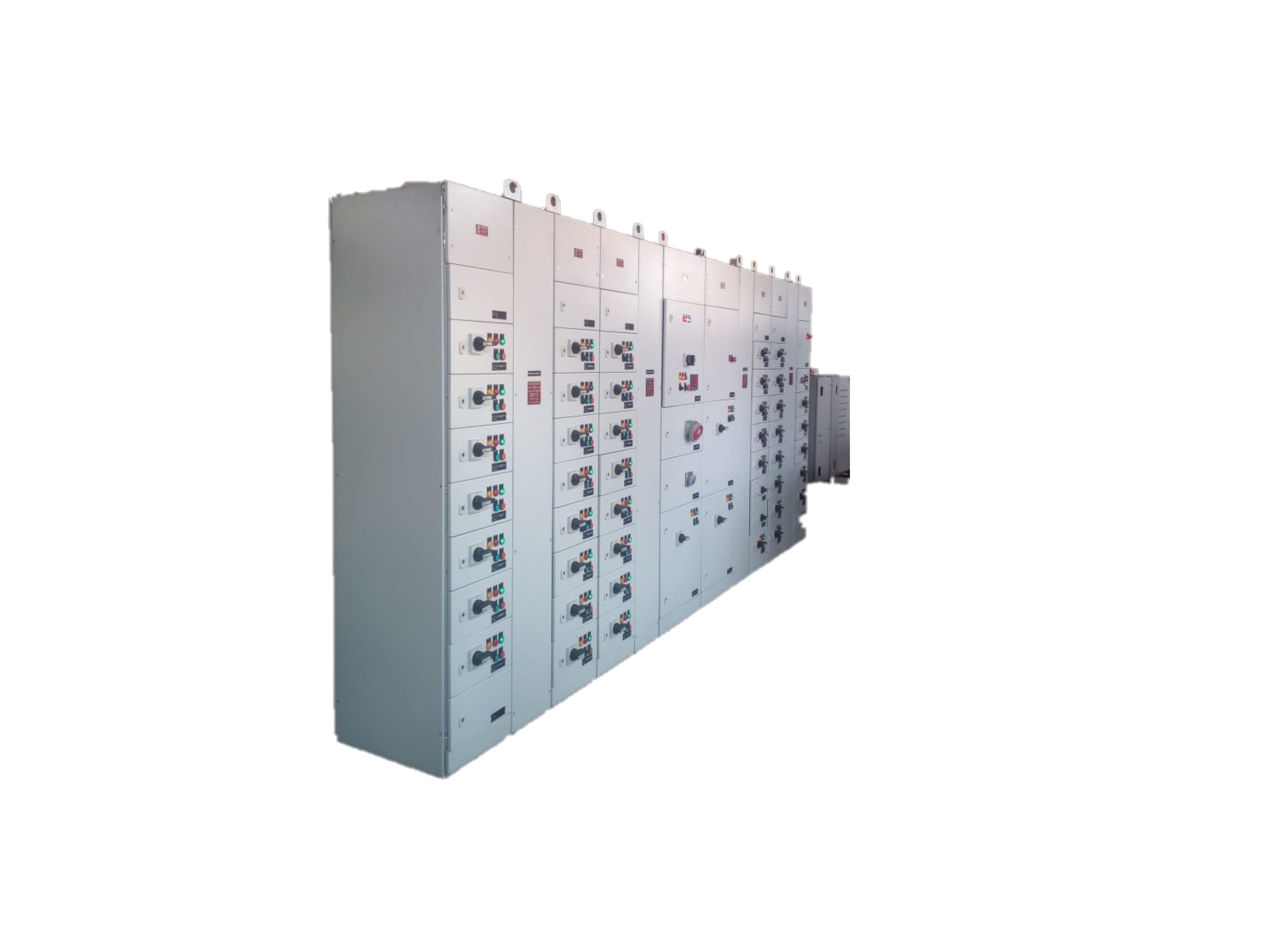

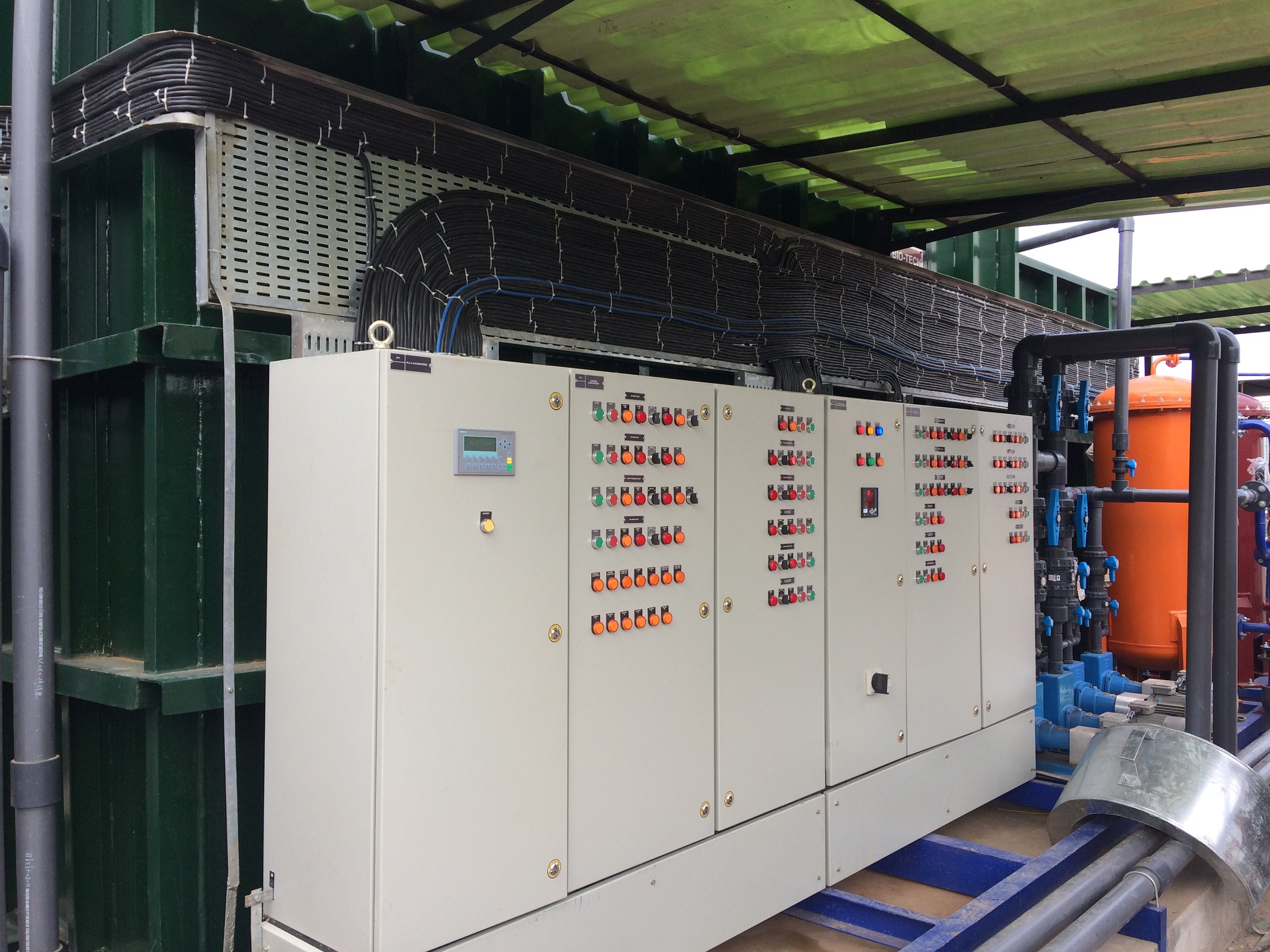

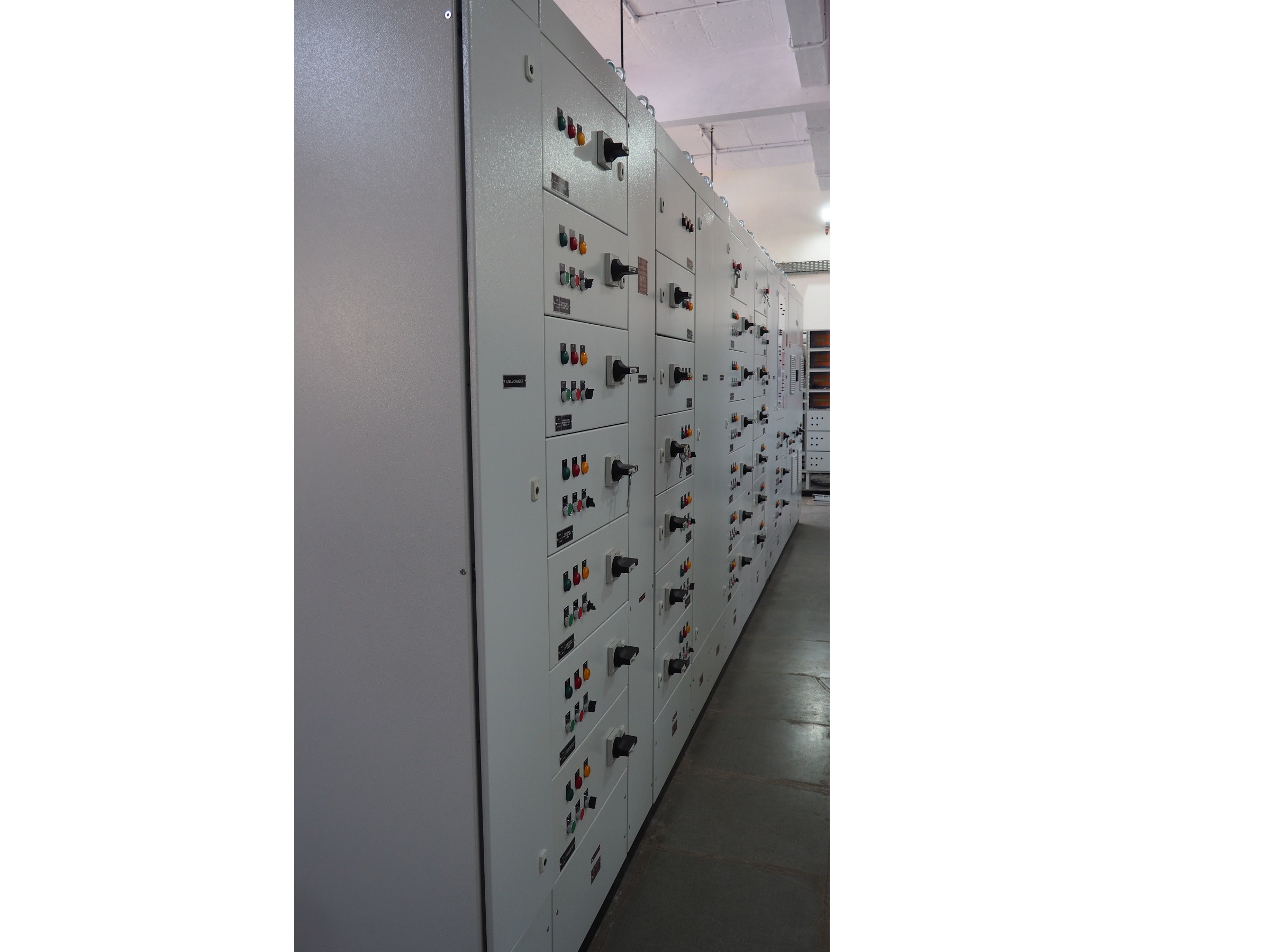

Simective has vast experience in manufacturing custom made MCC Switchboards.

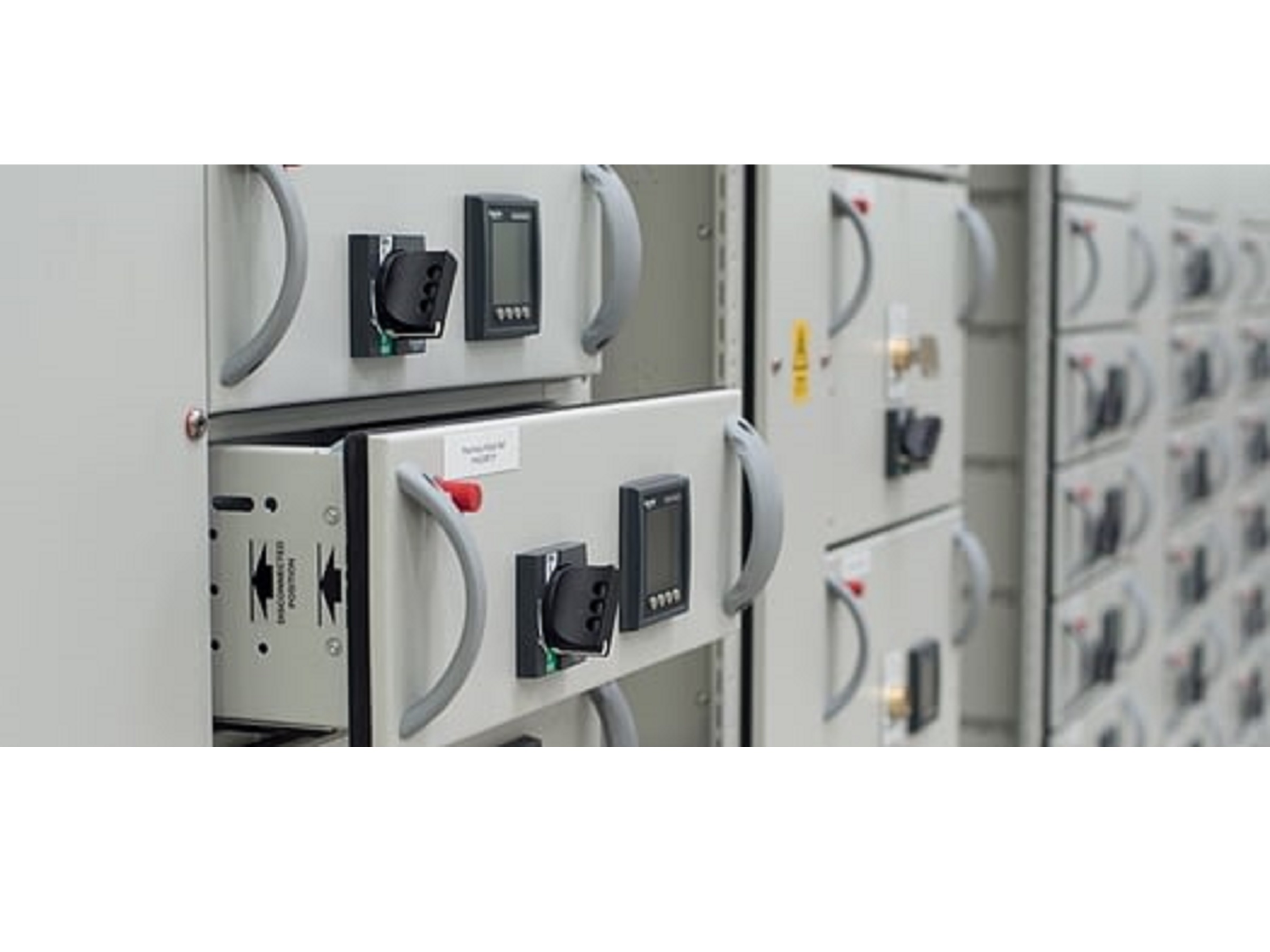

  • Type: Modular/Non-Modular, Fixed/Draw out, Single front/Double front, dust and Vermin proof
  • Protection Class: IP 42/IP 54/IP 55
  • MOC: CRCA 12 / 14 / 16 guage as per requirement.
  • Rated Supply: 380/415/440/480V, 50/60Hz, 3Phase, 3/4 Wire
  • Short Circuilt Level: 36/50 kA for 1 sec
  • Rated Current: 4000 A for Main Bus
  • Enclosure Type: Indoor / Outdoor
  • Standards: CPRI Tested OR IEC 61439 Part 1 & 2.
  • Busbar MOC: Aluminum/Copper, Electrolytic grade.
  • Feeders: DOL/Star-Delta/Soft-Starter/VFD
